Screw Compressor C-2 R up to 22 kW
Compact. Quiet. Efficient.
Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and generate compressed air with maximum efficiency. Optimally tailored to your requirements with compressed air receiver and ergonomic control – efficient, compact compressed air station ready for connection.
Product

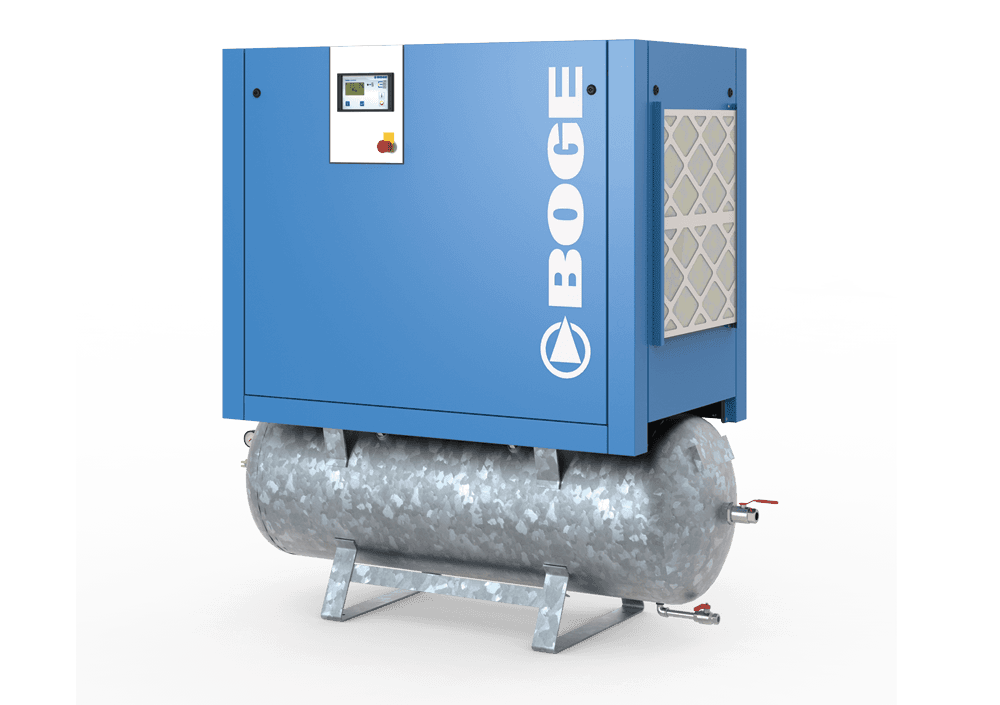

Compact screw compressor, oil-lubricated, on receiver
advantages
- ergonomic control

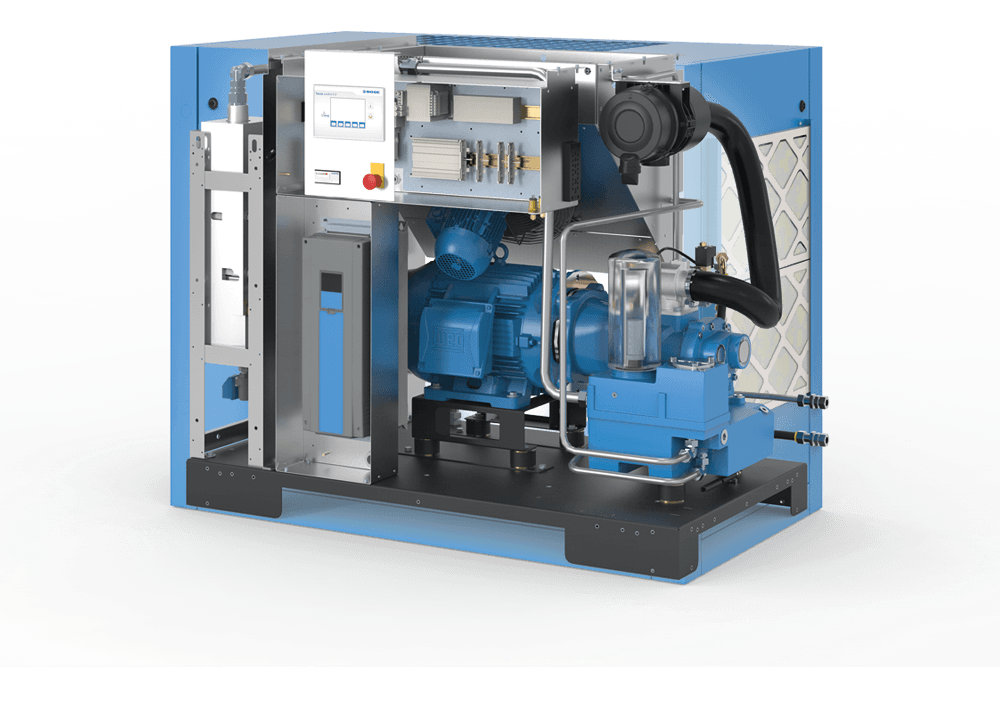

- integrated design
- extremely quiet
- various options can be integrated e.g. heat recovery
- with receiver
- maximum efficiency
COMPRESSED AIR ACCESSORIES FOR THIS PRODUCT
OTHER CONSTRUCTION VARIANTS
| BOGE | Max Pressure | Effective Delivery Volume 50 Hz | Motor Power | Dimensions W × H × D | Weight | |||
|---|---|---|---|---|---|---|---|---|
| type | bar | psig | m3/min | cfm | kW | hp | mm | kg |
| C 12-2 R | 7.5 | 109 | 1.970 | 69.6 | 11 | 15 | 2036 x 915 x 1915 | 673 |
| C 12-2 R | 10 | 145 | 1.710 | 60.4 | 11 | 15 | 2036 x 915 x 1915 | 673 |
| C 12-2 R | 13 | 189 | 1.310 | 46.3 | 11 | 15 | 2036 x 915 x 1915 | 673 |
| C 12-2 R | 15 | 217 | 1.080 | 38.1 | 11 | 15 | 2036 x 915 x 1915 | 673 |
| C 15-2 R | 7.5 | 109 | 2.560 | 90.4 | 15 | 20 | 2036 x 915 x 1915 | 683 |
| C 15-2 R | 10 | 145 | 2.250 | 79.5 | 15 | 20 | 2036 x 915 x 1915 | 683 |
| C 15-2 R | 13 | 189 | 1.890 | 66.7 | 15 | 20 | 2036 x 915 x 1915 | 683 |
| C 15-2 R | 15 | 217 | 1.530 | 54 | 15 | 20 | 2036 x 915 x 1915 | 683 |
| C 18-2 R | 7.5 | 109 | 3.120 | 110.2 | 18 | 25 | 2036 x 915 x 1915 | 718 |
| C 18-2 R | 10 | 145 | 2.710 | 95.7 | 18 | 25 | 2036 x 915 x 1915 | 718 |
| C 18-2 R | 13 | 189 | 2.320 | 81.9 | 18 | 25 | 2036 x 915 x 1915 | 718 |
| C 18-2 R | 15 | 217 | 2.100 | 74.2 | 18.5 | 25 | 2036 x 915 x 1915 | 718 |
| C 22-2 R | 7.5 | 109 | 3.640 | 128.5 | 22 | 30 | 2036 x 915 x 1915 | 748 |
| C 22-2 R | 10 | 145 | 3.210 | 113.4 | 22 | 30 | 2036 x 915 x 1915 | 748 |
| C 22-2 R | 13 | 189 | 2.740 | 96.8 | 22 | 30 | 2036 x 915 x 1915 | 748 |
| C 22-2 R | 15 | 217 | 2.470 | 87.2 | 22 | 30 | 2036 x 915 x 1915 | 748 |
