Screw compressor S eco

Standard product with high availability - made in Germany

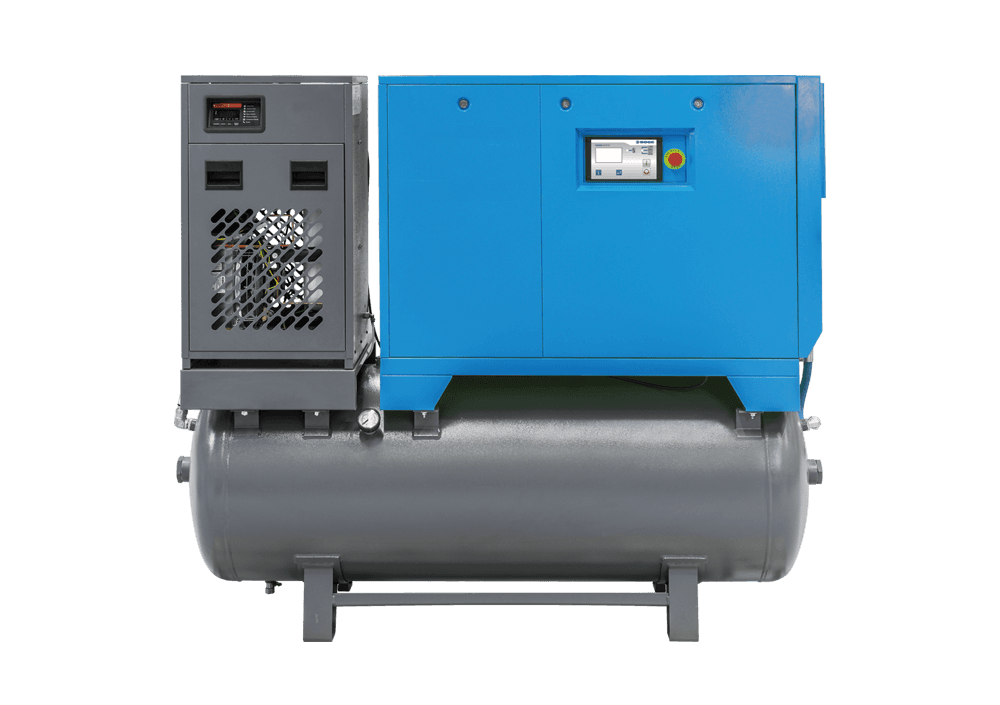

    BOGE S ecoline

    Compressed air system with high availability.

    Product

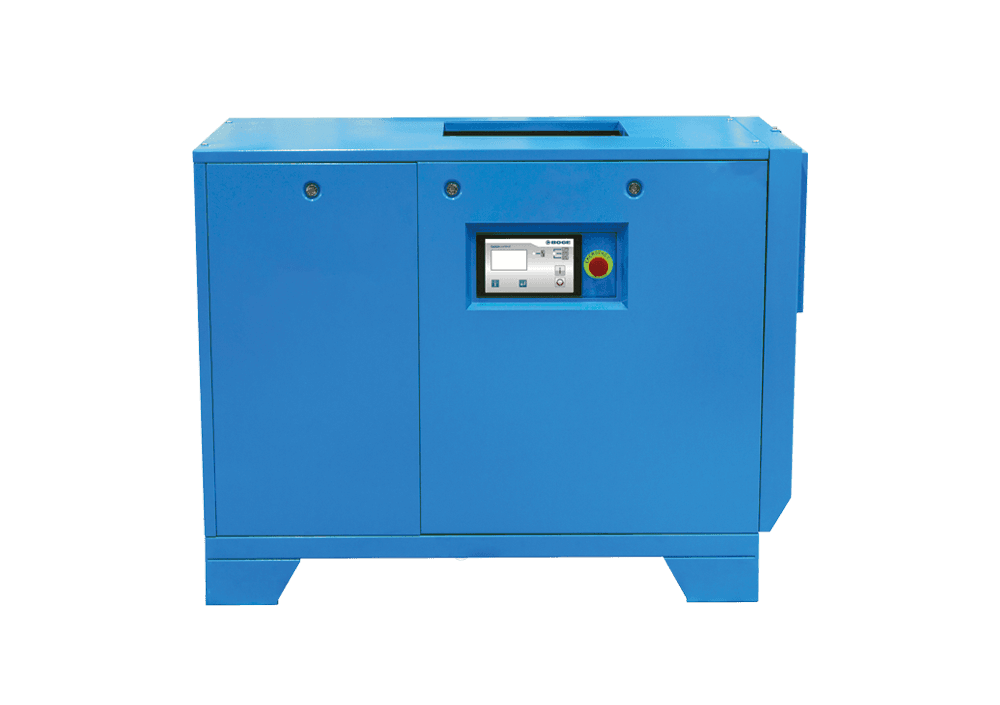

    Screw compressor with belt-driven drive system, oil-lubricated

    Advantages

    • base control with microprocessor system
    • BOGE airend made in Germany
    • low compressed air temperature due to effective aftercooler
  • BOGE Max. Pressure Effective Delivery Volume
    50 Hz
    Motor Power Dimensions
    W × D × H
    Weight
    Type bar psig m3/min cfm kW hp mm kg
    S 4 eco 7.5 109 0.600 21.2 4 5.5 1240 x 650 x 950 246
    S 4 eco 10 145 0.490 17.3 4 5.5 1240 x 650 x 950 246
    S 5 eco 7.5 109 0.800 28.3 5.5 7.5 1240 x 650 x 950 267
    S 5 eco 10 145 0.700 24.7 5.5 7.5 1240 x 650 x 950 267
    S 7 eco 7.5 109 1.100 38.8 7.5 10 1240 x 650 x 950 270
    S 7 eco 10 145 1.000 35.3 7.5 10 1240 x 650 x 950 270
    S 11 eco 7.5 109 1.650 58.3 11 15 1240 x 650 x 950 280
    S 11 eco 10 145 1.450 51.2 11 15 1240 x 650 x 950 280
    S 15 eco 7.5 109 2.100 74.2 15 20 1240 x 650 x 950 325
    S 15 eco 10 145 1.950 68.9 15 20 1240 x 650 x 950 325
    S 18 eco 7.5 109 3.000 105.9 18.5 25 1250 x 850 x 1335 400
    S 18 eco 10 145 2.600 91.8 18.5 25 1250 x 850 x 1335 400
    S 22 eco 7.5 109 3.300 116.5 22 30 1250 x 850 x 1335 440
    S 22 eco 10 145 3.100 109.5 22 30 1250 x 850 x 1335 440
    S 30 eco 7.5 109 4.800 169.5 30 40 1250 x 850 x 1335 590
    S 30 eco 10 145 4.100 144.8 30 40 1250 x 850 x 1335 590
