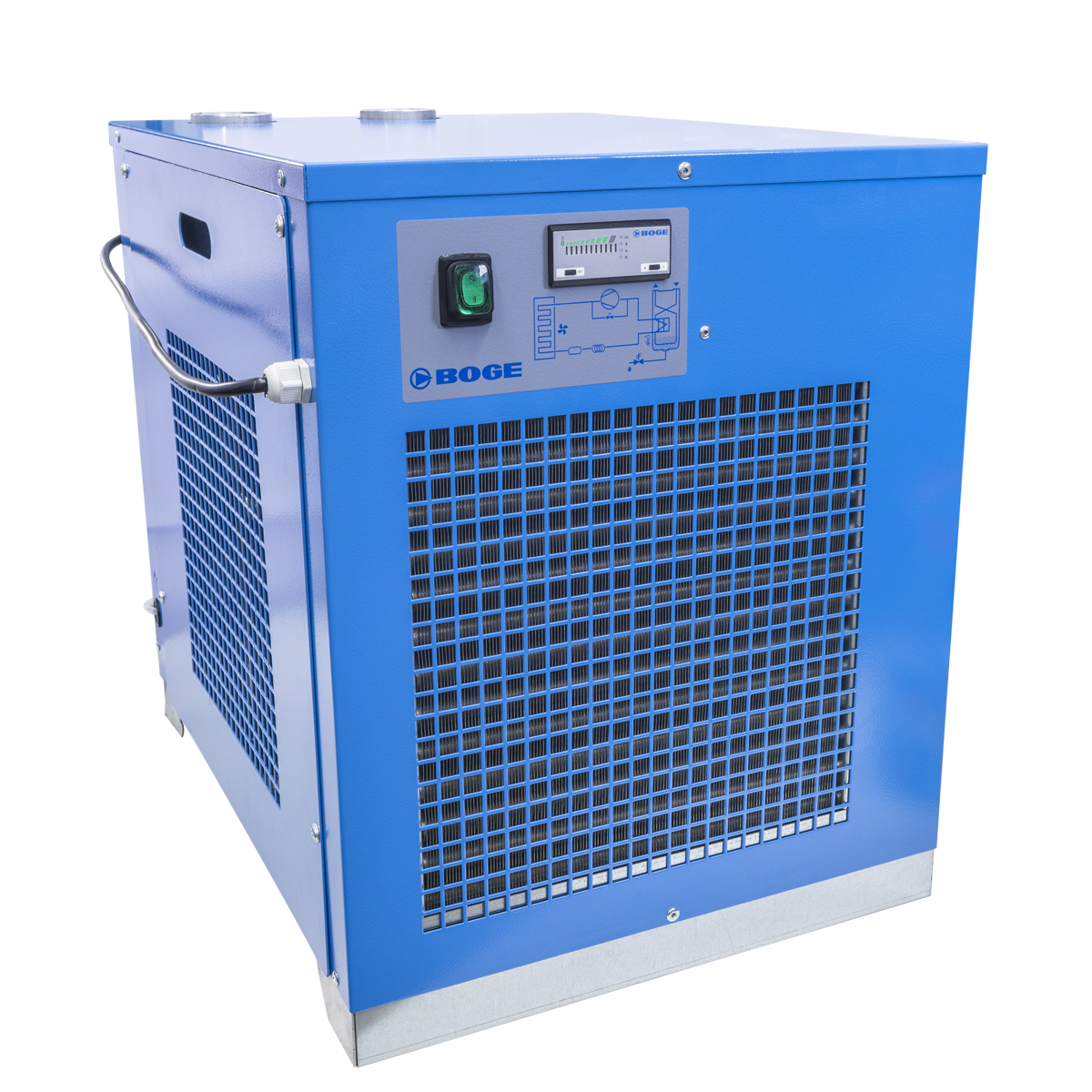

Refrigerant compressed air dryers DT 4 up to DT 140
Maximum efficiency and reliability
What sets the refrigerant dryers from our DT series apart is their outstanding efficiency: an innovative 'all-in-one' aluminium heat exchanger combines the components air/air heat exchanger, evaporator and condensate drain. The counter flow process in the air to air heat exchanger maximises heat transfer.
Low differential pressure, much low power consumption and a stable dew point - these models know what matters in practice.
All models come with the environmentally-friendly and future-proof refrigerant R 513A as standard, which comply with the requirements' of the F-Gas Regulation (EU 517:2014) and ensure maximum security of supply.
Product
advantages
- Stable pressure dew point
- low CO2 footprint
- Energy efficient
- High ambient conditions
- Sustainable & future-proof
- Maintenance & service friendly
COMPRESSED AIR ACCESSORIES FOR THIS PRODUCT
OTHER CONSTRUCTION VARIANTS
| BOGE | Max Pressure | Flow Capacity 50 Hz | Dimensions W × H × D | Weight | ||
|---|---|---|---|---|---|---|
| type | bar | psig | m3/min | cfm | mm | kg |
| DT 4 | 16 | 232 | 0.400 | 14.1 | 350 x 450 x 490 | 19 |
| DT 7 | 16 | 232 | 0.700 | 24.7 | 350 x 450 x 490 | 21 |
| DT 9 | 16 | 232 | 0.900 | 31.8 | 350 x 450 x 490 | 24 |
| DT 14 | 16 | 232 | 1.400 | 49.4 | 350 x 450 x 490 | 27 |
| DT 18 | 16 | 232 | 1.800 | 63.6 | 350 x 450 x 490 | 28 |
| DT 26 | 16 | 232 | 2.600 | 91.8 | 450 x 600 x 550 | 39 |
| DT 32 | 16 | 232 | 3.200 | 113 | 450 x 600 x 550 | 44 |
| DT 40 | 16 | 232 | 4.000 | 141.3 | 450 x 600 x 550 | 45 |
| DT 52 | 16 | 232 | 5.200 | 183.6 | 510 x 790 x 860 | 62 |
| DT 62 | 16 | 232 | 6.200 | 218.9 | 510 x 790 x 860 | 64 |
| DT 80 | 16 | 232 | 8.000 | 282.5 | 510 x 790 x 860 | 75 |
| DT 100 | 16 | 232 | 10.000 | 353.1 | 510 x 790 x 860 | 83 |
| DT 120 | 16 | 232 | 12.000 | 423.8 | 580 x 790 x 880 | 106 |
| DT 140 | 16 | 232 | 14.000 | 494.4 | 580 x 790 x 880 | 109 |
All of the above details refer to DIN ISO 7183, at 25°C ambient temperature, 35°C inlet temperature and 7 bar operating pressure.
