Receivers

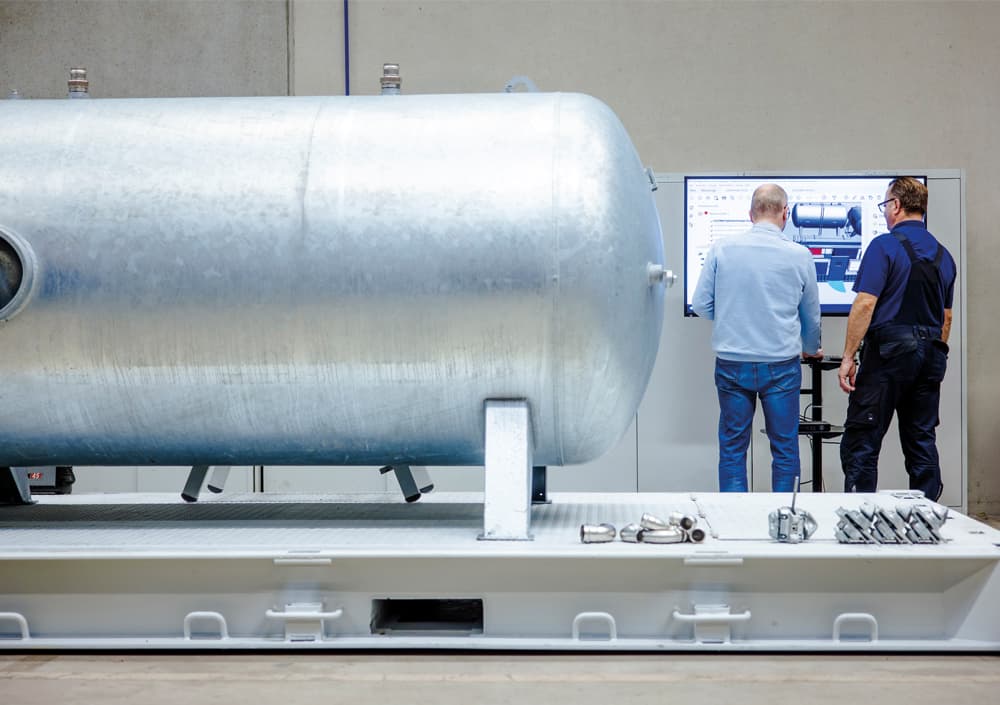

Compressed air storage of the highest quality

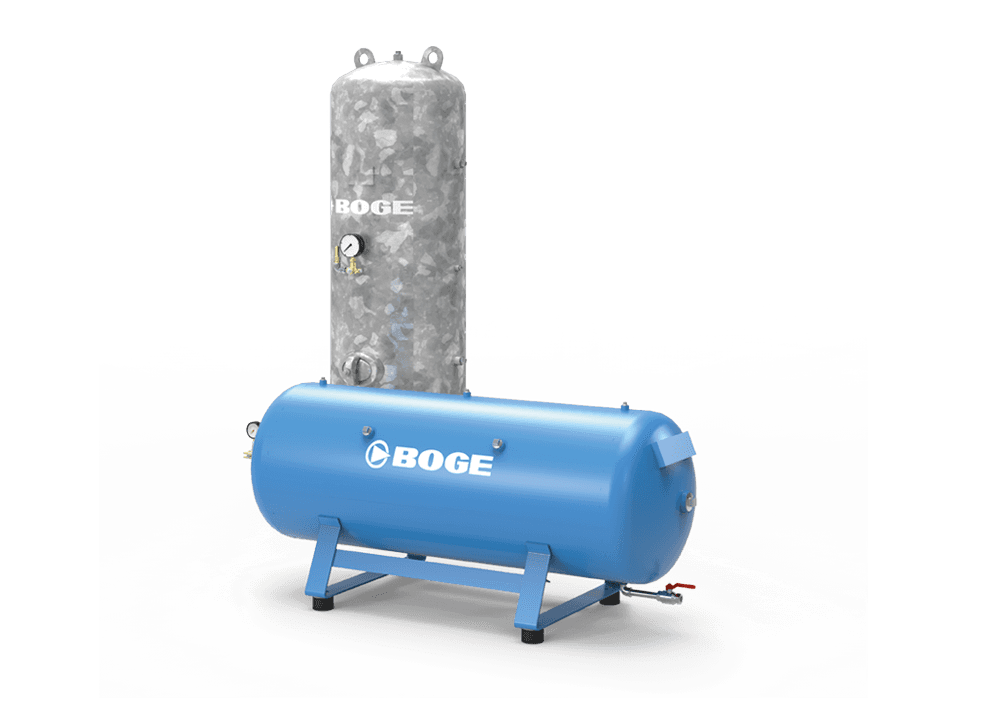

The compressed air receiver performs several important roles. These include storing the compressed air, separating the condensate as well as its function as a pulsation damper. The materials and workmanship at BOGE are therefore of the highest quality.
Product
Receivers
advantages
COMPRESSED AIR ACCESSORIES FOR THIS PRODUCT
OTHER CONSTRUCTION VARIANTS
| BOGE | Max Pressure | Dimensions W × H × D | Weight | |
|---|---|---|---|---|
| type | bar | psig | mm | kg |
| 50 l (11 bar) | 11 | 160 | 892 x 450 x 403 | 28 |
| 90 l (11 bar) | 11 | 159.5 | 1016 x 471 x 440 | 41 |
| 160 l (11 bar) | 11 | 159.5 | 1250 x 511 x 552 | 75 |
| 270 l (11 bar) | 11 | 159.5 | 1598 x 676 x 625 | 108 |
| 350 l (11 bar) | 11 | 159.5 | 1630 x 720 x 675 | 130 |
| 500 l (11 bar) | 11 | 159.5 | 1780 x 745 x 742 | 160 |
| 750 l (11 bar) | 11 | 159.5 | 1860 x 920 x 875 | 220 |
| 1000 l (11 bar) | 11 | 159.5 | 2150 x 945 x 943 | 280 |
| 1500 l (11 bar) | 11 | 159.5 | 2060 x 1100 x 1220 | 420 |
| 2000 l (11 bar) | 11 | 159.5 | 2200 x 1200 x 1345 | 600 |
| 3000 l (11 bar) | 11 | 159.5 | 2735 x 1350 x 1470 | 830 |
| 5000 l (11 bar) | 11 | 159.5 | 3330 x 1500 x 1620 | 1200 |
| 5000 l (11 bar, Flansch) | 11 | 159.5 | 3330 x 1500 x 1620 | 1200 |
| 10000 l (11 bar, Flansch) | 11 | 159.5 | 5570 x 1600 x 1800 | 2500 |
| 60 l (16 bar) | 16 | 232 | 736 x 450 x 475 | 35 |
| 160 l (16 bar) | 16 | 232 | 1240 x 511 x 552 | 85 |
| 350 l (16 bar) | 16 | 232 | 1630 x 720 x 675 | 160 |
| 500 l (16 bar) | 16 | 232 | 1780 x 745 x 742 | 185 |
| 750 l (16 bar) | 16 | 232 | 1860 x 920 x 875 | 275 |
| 1000 l (16 bar) | 16 | 232 | 2150 x 945 x 943 | 330 |
| 1500 l (16 bar) | 16 | 232 | 2060 x 1100 x 1220 | 595 |
| 2000 l (16 bar) | 16 | 232 | 2000 x 1100 x 1250 | 800 |
| 3000 l (16 bar) | 16 | 232 | 2735 x 1350 x 1470 | 1200 |
| 5000 l (16 bar) | 16 | 232 | 3560 x 1500 x 1620 | 1380 |
| 5000 l (16 bar, Flansch) | 16 | 232 | 3560 x 1500 x 1700 | 1380 |
| 10000 l (16 bar, Flansch) | 16 | 232 | 5570 x 1600 x 1800 | 2260 |
| 150 l (36 bar) | 36 | 522 | 1340 x 410 x 480 | 130 |
| 250 l (36 bar) | 36 | 522 | 1410 x 570 x 634 | 190 |
| 350 l (36 bar) | 36 | 522 | 1636 x 620 x 668 | 215 |
| 500 l (36 bar) | 36 | 522 | 1776 x 670 x 915 | 300 |
| 1000 l (36 bar) | 36 | 522 | 2705 x 1350 x 1470 | 560 |
| 2000 l (36 bar) | 36 | 522 | 2230 x 1200 x 1345 | 1140 |
| 3000 l (36 bar) | 36 | 522 | 2735 x 1250 x 1450 | 1750 |
| 5000 l (36 bar) | 36 | 522 | 3560 x 1500 x 1620 | 2600 |
| 500 l (41 bar) | 41 | 595 | 1950 x 600 | 350 |
| 1000 l (41 bar) | 41 | 595 | 2000 x 800 | 560 |
