Adsorption Dryers, External Heated Regeneration and Vacuum Cooling

Compressed air drying with a low energy system: the BOGE DAV-2 Series

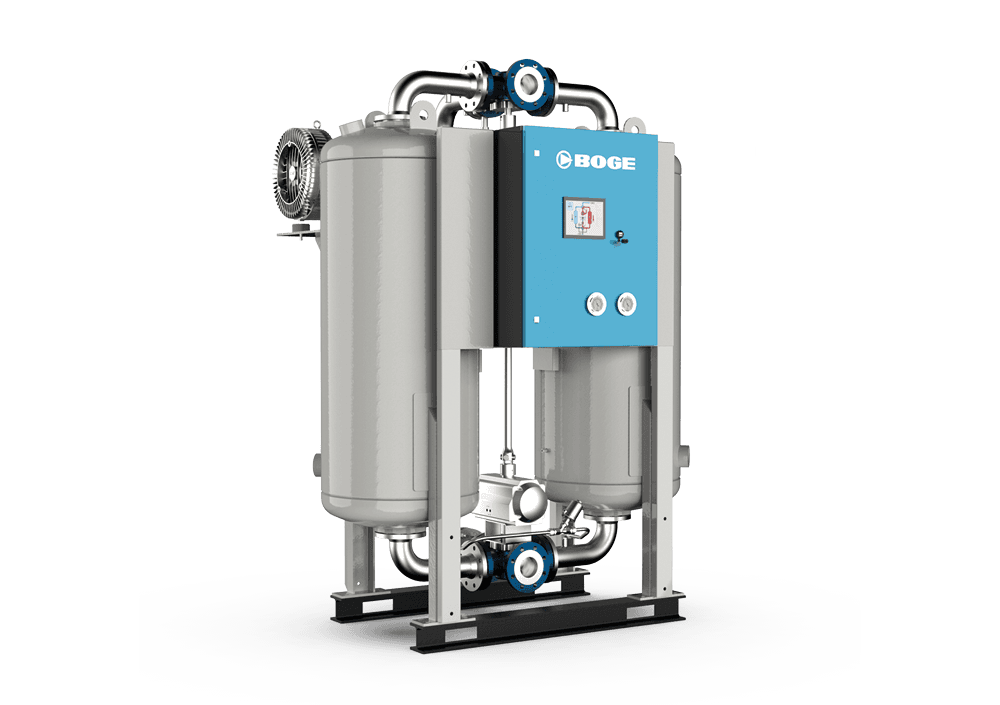

    BOGE DAV-2

    Where large volume flows meet particularly high demands on compressed air quality (pharmaceutical, electrical and automotive industries), BOGE adsorption dryers are the technology of choice: while the moisture is bound to the surface of the high‑quality two‑bed desiccant filling in a receiver (adsorption), the other receiver regenerates. During the regeneration process, ambient air is drawn from the bottom to the top of the receiver over the desiccant bed via a heater and the stored moisture is discharged to the outside. So no purge air needs to be removed from the already dried process air. As a result, the DAV dryers consume up to 25% less energy compared to heatless systems.

    Product

    Adsorption dryers, external heated regeneration and vacuum cooling

    Advantages

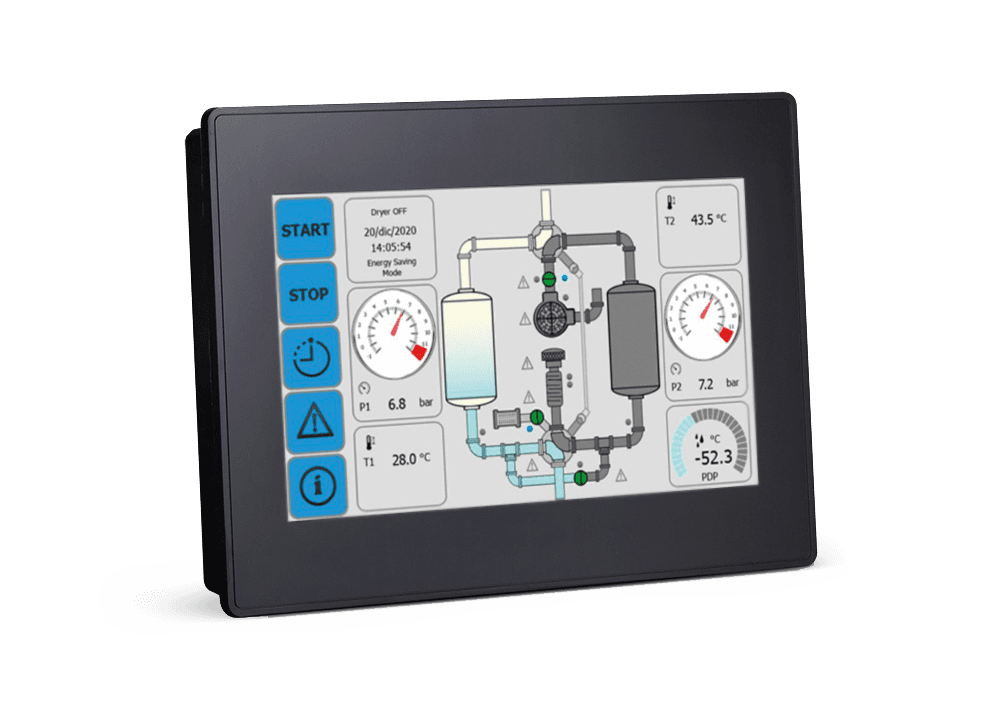

    • Intelligent control system
    • Minimal pressure losses
    • Pressure dew points down to -70°C
    • Service-friendly
    • Thermal insulation
    • Zero purge system

    Compressed air accessories for this product

  • BOGE Max. Pressure Flow Capacity
    50 Hz
    Dimensions
    W × D × H
    Weight
    Type bar psig m3/min cfm mm kg
    DAV 75-2 11 160 7.500 265.0 1222 x 2029 x 1219 730
    DAV 105-2 11 160 10.200 359.0 1222 x 2029 x 1219 760
    DAV 135-2 11 160 13.300 471.0 1222 x 2379 x 1219 860
    DAV 195-2 11 160 19.500 689.0 1692 x 2151 x 1412 1290
    DAV 245-2 11 160 24.500 865.0 1692 x 2301 x 1412 1400
    DAV 345-2 11 160 34.200 1,207.0 1692 x 2751 x 1462 1810
    DAV 510-2 11 160 50.800 1,795.0 2115 x 2692 x 1702 2540
    DAV 620-2 11 160 61.700 2,178.0 2115 x 2992 x 1702 2830
    DAV 845-2 11 160 84.200 2,972.0 2582 x 3210 x 1910 4205
    DAV 1010-2 11 160 100.800 3,561.0 2582 x 3460 x 1910 4635
    DAV 1220-2 11 160 121.700 4,297.0 2782 x 3450 x 2010 5280
