BOGE T 220 Turbo Compressor
Smallest-format oil-free compressed air
The best guarantee for 100% Class 0 oil-free compressed air? Make sure the drive mechanics function entirely without lubrication. No grease, no oil, only air and expertise. The fact that the new BOGE T 220 is only half the size and a third of the weight of a conventional screw compressor with a comparable output shows the superiority of this smart drive concept that is gentle on resources. Fewer components, fewer CO2 emissions, “capped” maintenance and operating costs and exemplary energy efficiency – this drive meets the requirements of the future even today.
Product

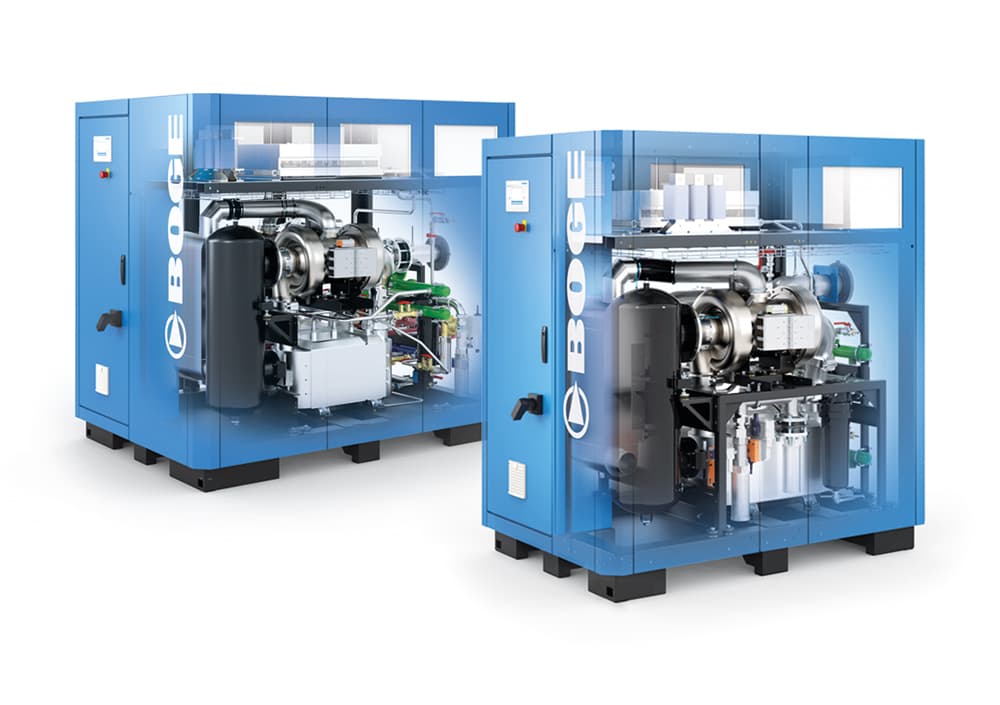

Oil-free turbo compressor
advantages
- Ölfreie Druckluft nach Klasse 0
- Luftgelagerte Antriebswelle für verschleißfreien, wartungsarmen Betrieb

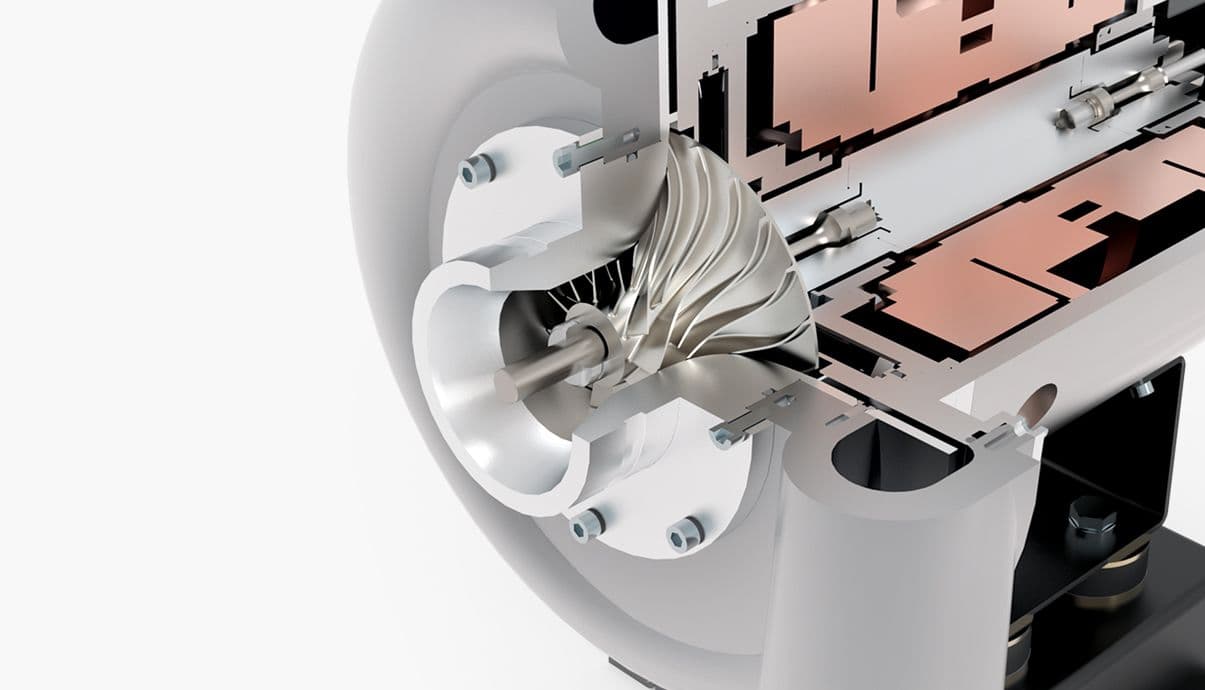

- Hochfeste Titan-Laufräder und -Rotoren
- Permanentmagnetmotor mit hoher Energiedichte
- Keine Öl- oder Ölfilterwechsel
- Significantly reduced noise levels
COMPRESSED AIR ACCESSORIES FOR THIS PRODUCT
OTHER CONSTRUCTION VARIANTS
| BOGE | Max Pressure | Effective Delivery Volume 50 Hz | Motor Power | Dimensions W × H × D | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| type | bar | psig | m3/min | cfm | m3/min(max) | cfm(max) | kW | hp | mm | kg |
| T 220 | 5 | 73 | 20.300 | 716.9 | 38.400 | 1356.1 | 220 | 295 | 1545 x 2340 x 1930 | 1900 |
| T 220 | 6 | 87 | 21.500 | 759.3 | 37.500 | 1324.3 | 220 | 295 | 1545 x 2340 x 1930 | 1900 |
| T 220 | 7 | 102 | 23.500 | 829.9 | 36.200 | 1278.4 | 220 | 295 | 1545 x 2340 x 1930 | 1900 |
| T 220 | 7.5 | 109 | 24.800 | 875.8 | 35.600 | 1257.2 | 220 | 295 | 1545 x 2340 x 1930 | 1900 |
| T 220 | 8 | 116 | 26.000 | 918.2 | 34.500 | 1218.4 | 220 | 295 | 1545 x 2340 x 1930 | 1900 |
